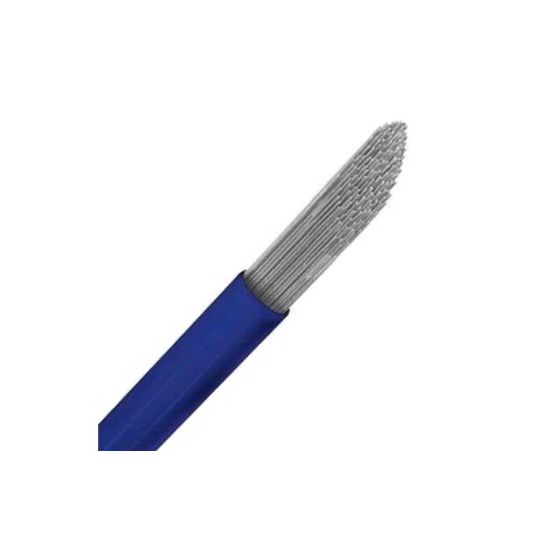

Kenmerken GEKA TIG lasdraad ELOX 308L 2,4X1000MM 5kgDeze austenitische roestvaststalen TIG-lasdraad met lage koolstofinhoud (ER 308L / W 19 9 L) is speciaal ontwikkeld om de kans op interkristallijne carbideprecipitatie te minimaliseren en biedt uitstekende weerstand tegen interkristallijne corrosie. De draad is geschikt voor uiteenlopende toepassingen in de voedingsmiddelen-, papier-, chemische en farmaceutische industrie en biedt goede mechanische eigenschappen tot -196 °C en corrosiebestendigheid tot 400 °C.
- Austenitische RVS lasdraad met lage koolstofinhoud
- Verminderde gevoeligheid voor interkristallijne carbideprecipitatie
- Goede corrosieweerstand, ook in salpeterzuurmilieus
- Ductiel gedrag tot -196 °C
- Weerstand tegen interkristallijne corrosie tot 400 °C
- Geschikt voor onderhoud en nieuwbouw van leidingen, ketelbouw, en voedselverwerkende installaties
- Te gebruiken met Argon (Ar) als beschermgas
- Lasposities: PA, PB, PC, PD, PE, PF, PG
Technische specificaties- Normen: EN ISO 14343-A W 19 9 L / AWS A5.9 ER 308L
- Diameter x Lengte: Ø2,4 × 1000 mm
- Verpakking: Kunststof doos
- Gewicht: 5 kg
- Stroomtype: TIG DC (-)
- Samenstelling (typisch, %): C 0,02 | Si 0,5 | Mn 1,7 | Cr 20,1 | Ni 9,8
- Mechanische eigenschappen (typisch):
- Treksterkte: 510–660 MPa
- Rekgrens: 320–390 MPa
- Rek (A5): ≥25–35%
- Kerftaaiheid: ≥63–80 J bij +20 °C
- Toepasbare basismaterialen: AISI 304, 304L, 304LN, 321, 347 en vergelijkbare RVS-kwaliteiten
- Beschermgas: EN ISO 14175 – I1 (Argon)
