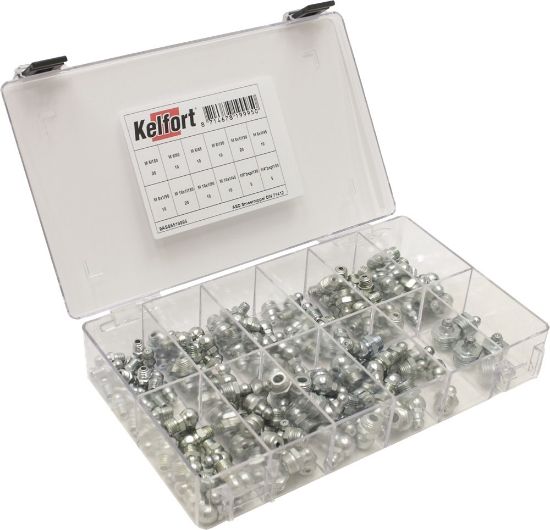

Transparante kunststof doos, 12 vaks. Afmeting 218x142x42 mm.

Inhoud:
Smeernippels

Elektrolytisch verzinkt, staal, metrische schroefdraad. Volgens DIN 71412.

artikel nr___draadmaat___hoek______lengte______hoogte(kop)___uitsteek(kop)___sleutelwijdte______stuks
5519904____M06 _______180°_______23,5mm____5,5mm________10,5mm_________9,6mm_________20
5519903____M06 ________90°_______18,0mm____5,5mm________13,0mm_________9,6mm_________10
5519902____M06 ________45°_______23,5mm____5,5mm________10,5mm_________9,6mm_________10
5519914____M08 _______180°_______23,5mm____5,5mm________10,5mm_________9,6mm_________10
5519912____M08x1 _____180°_______23,5mm____5,5mm________10,5mm_________9,6mm_________20
5519913____M08x1 ______45°_______23,5mm____5,5mm________10,5mm_________9,6mm_________10
5519924____M08x1 ______90°_______18,0mm____5,5mm________13,0mm_________9,6mm_________10
5519923____M10x1 _____180°_______25,0mm____5,5mm________11,5mm________11,6mm_________20
5519922____M10x1 ______90°_______18,0mm____5,5mm________13,0mm________11,6mm_________10
5519944____M10x1 ______45°_______25,0mm____5,5mm________11,5mm________11,6mm_________10
5519934____1/8"bsp ____180°_______22,0mm____6,5mm________14,6mm________16,0mm__________5
5519908____1/4"bsp ____180°_______22,0mm____6,5mm________14,6mm________16,0mm__________5
