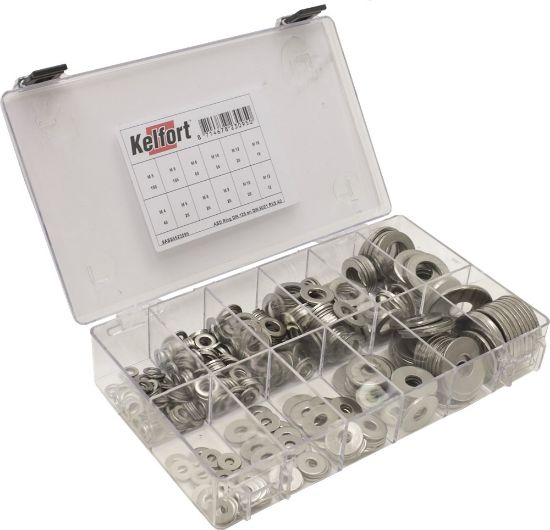

Transparante kunststof doos, 12 vaks. Afmeting 218x142x42 mm.

Inhoud:
Sluitringen

Rvs AISI 304 (A2). Volgens DIN 9021.

artikel nr______draadmaat______stuks
5523005_______M 5 ___________100
5523006_______M 6 ___________100
5523008_______M 8 ____________60
5523010_______M10____________50
5523012_______M12____________20
5523016_______M16____________16

Carrosserieringen

Rvs AISI 304 (A2). Volgens DIN 9021.

artikel nr______draadmaat______diam. inwendig mm______diam. uitwendig mm______dikte mm______stuks
5523104_______M 4 ____________4,3___________________12,0___________________1,0___________40
5523105_______M 5 ____________5,3___________________15,0___________________1,2___________20
5523106_______M 6 ____________6,4___________________18,0___________________1,6___________20
5523108_______M 8 ____________8,4___________________24,0___________________2,0___________20
5523110_______M10___________10,5___________________30,0___________________2,5___________20
5523112_______M12___________13,0___________________37,0___________________3,0___________12
