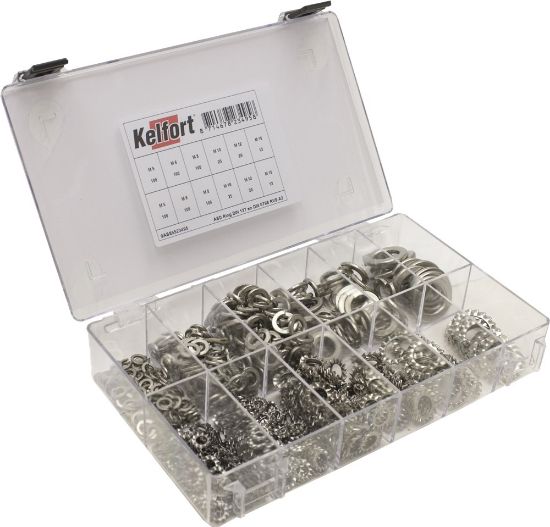

Transparante kunststof doos, 12 vaks. Afmeting 218x142x42 mm.

Inhoud:
Veerringen

Rvs AISI 304 (A2). Van plat materiaal, zonder opgebogen einden. Volgens DIN 127B.

artikel nr___draadmaat___diam. inwendig mm___diam. uitwendig mm___dikte mm___stuks
5523405____M 5 _________5,1_________________9,2________________1,2________100,0
5523406____M 6 _________6,1________________11,8________________1,6________100,0
5523408____M 8 _________8,1________________14,8________________2,0________100,0
5523410____M10________10,2________________18,1________________2,2_________25,0
5523412____M12________12,2________________21,1________________2,5_________20,0
5523416____M16________16,2________________27,4________________3,5_________12,0

Tandveerringen

Rvs AISI 304 (A2), met buitenvertanding. Volgens DIN 6798A.

artikel nr___draadmaat___diam. inwendig mm___diam. uitwendig mm___dikte mm___stuks
5523465____M 5 _________5,3________________10,0________________0,6_________40
5523466____M 6 _________6,4________________11,0________________0,7_________20
5523468____M 8 _________6,4________________15,0________________0,8_________20
5523470____M10_________8,4________________18,0________________0,9_________20
5523472____M12________10,5________________20,5________________1,0_________20
5523476____M16________13,0________________26,0________________1,2_________12
